About the machine

The DozzIt Essense filling machine is suitable for filling highly aromatic products such as perfumes and essential oils in micro and small doses such as 5 ml., 10 ml., 50 ml., 100 ml. and others. The machine is equipped with a peristaltic pump, the main advantages of which are accuracy and hygiene. The fluid only comes into contact with a special silicone hose, which is pressed by the rollers of the pump, thus being pushed towards the dosing end. The fluid does not come into contact with the pump, which means that only the hose is washed after completion of work. The variety of hoses allows filling of highly acidic or basic products. This machine does not require deaeration as it self-primes from your container.

Suitable for:

  • Essential oils
  • Vegetable oils
  • Oils
  • Perfumes
  • Essences
  • Water-based products
  • Inks
  • Bases and acids

Warranty:

2 years

Industries
Chemical
Cosmetics

Pump and hoses

Main advantages

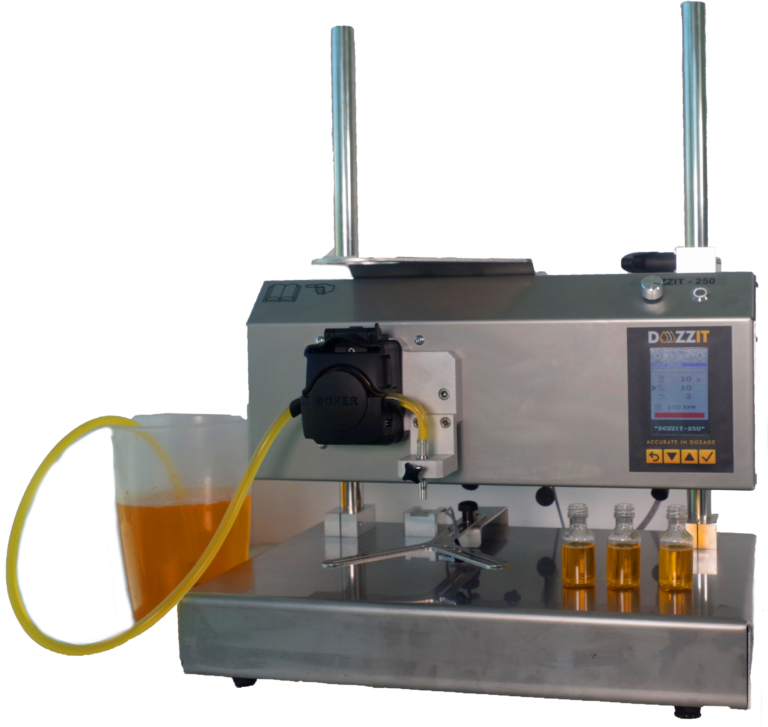

DozzIt Essense is a compact and precise dispenser aimed at small and medium production processes. Made entirely of chrome-nickel material for the body and equipped with a peristaltic pump, the Essense model has significant advantages compared to other machines in this class.

The peristaltic pump with which the machine works guarantees precise dosing, as depending on the volume to be dosed, a hose with a larger or smaller internal cross-section can be selected. Depending on the type of product, different hose materials can also be selected.

Main advantages
Compact design and flexibility

Operating modes

Compact design and flexibility

Modes

There are two operating modes - automatic (doser) and manual (pump). In the automatic mode, the machine performs a preset dose (e.g. 5 ml. 25 ml. 100 ml.), and in the manual mode it can be used as a filling pump at the discretion of the operator. In both operating modes, there is a "reverse suction" function, in which after filling, the machine makes several revolutions of the motor in the opposite direction to suck in the residual drop or stop unwanted dripping.

Ramps

The filling process is optimized thanks to the "ramp" function. It allows for a two-fold reduction in the motor speed during the first and last 30% of the operating time. Thanks to this function, the fluid is filled smoothly at the beginning with a lighter stream. At the end of the working program, the machine slows down again, which allows the foam to subside. The final ramp favors the filling of containers with narrower shapes at the top.

Here is how it works

See the machine in action

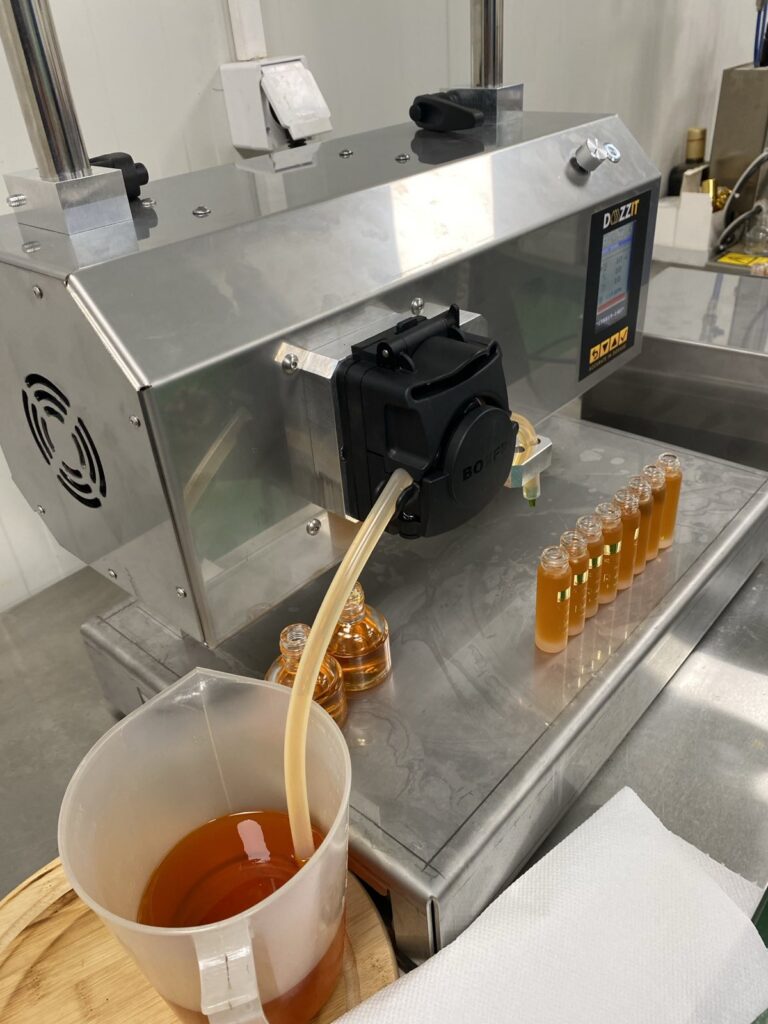

Demonstration of the DozzIt Essence dosing machine with essential oils. The machine is set to fill 10 ml. of essential oil. The motor of the machine is 250 rpm. The start is provided with a foot pedal.

Technical characteristics

Characteristics: Description:
Normal machine load on daily bases 8 hours
Normal machine load on month bases 5 days
Power supply 230 VA, 50/60Hz
Protection IP 20
Weight 21 kg. (without the power supply block)
Dimensions 470mm (width) х 320mm (depth) х 600mm (height),

950mm (optional)
Ambient operating temperature 10 - 40 °C
Temperature of the fluid 2 - 90 °C
Max. height of the suction hose 1000mm
Speed of the motor 70-250 rpm.
Step of the dose 0.5gr/ml to  100gr/ml

1 gr/ml over 100 gr/ml
Min. dose volume 3 gr/ml
Max. dose volume 4000 gr/ml
Accuracy ±2%
Start options Start button, foot pedal, external contact sensor (upon contact with the bottle).
